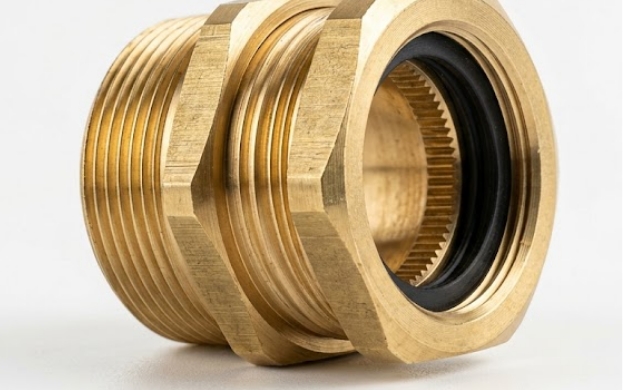

BW Cable Glands — 3 Part
For dry indoor termination of SWA cables. Provides armour clamping; cable armour details are required for correct selection.
Cable Glands
Product overview
For dry indoor termination of SWA cables. Provides armour clamping; cable armour details are required for correct selection.
- Armour clamp termination
- Accessories available
- Three-part gland construction
Series / codeBW / BWL Series
Standard / referenceBS 6121 Part 1
Technical data
Dimensions & product references
Dimensions are presented from the legacy product catalogue and should be reconfirmed against the final order specification.
| Gland size | Mounting thread Ø (mm) | Thread length (mm) | Cable A max (mm) | Cable B max (mm) | Armour wire Ø (mm) | Across-corner Ø (mm) |
|---|---|---|---|---|---|---|
| 20S | 20 | 10 | 11.6 | 16.8 | 0.90–1.25 | 27.5 |
| 20 | 20 | 10 | 13.9 | 20.8 | 0.90–1.25 | 31.6 |
| 25S | 25 | 10 | 17.3 | 24.0 | 1.25–1.60 | 36.0 |
| 25 | 25 | 10 | 19.9 | 27.0 | 1.25–1.60 | 40.0 |
| 32 | 32 | 10 | 26.2 | 33.5 | 1.60–2.00 | 48.5 |
| 40S | 40 | 15 | 30.2 | 37.2 | 1.60–2.00 | 56.0 |
| 40 | 40 | 15 | 32.2 | 40.0 | 1.60–2.00 | 58.5 |
| 50S | 50 | 15 | 39.8 | 47.5 | 2.00–2.50 | 68.0 |
| 50 | 50 | 15 | 44.0 | 52.0 | 2.00–2.50 | 72.5 |
| 63S | 63 | 15 | 50.0 | 60.5 | 2.00–2.50 | 82.0 |
| 63 | 63 | 15 | 55.8 | 66.0 | 2.00–2.50 | 88.0 |
| 75S | 75 | 15 | 62.2 | 74.0 | 2.50–3.20 | 98.0 |
| 75 | 75 | 15 | 67.8 | 78.0 | 2.50–3.20 | 107.5 |
01
Confirm application
Share cable type, armour details, thread, ingress requirement and operating environment where relevant.
02
Confirm specification
Specify size, material, finish, quantity, drawing and any inspection requirement.
03
Receive quotation
The commercial and technical review can then be completed against the requested configuration.
Technical enquiry
Need this product in a specific size or finish?
Send the product series, dimensions, material, quantity and delivery location.
